 EuroHitch 'Soft Hands'
Bale Grab |
|
The dedicated EuroHitch
'Soft Hands' Bale Grab
suits a wide variety of
bales especially plastic
wrapped or typical twine
tied. The unit utilizes
the standard EuroHitch
fitting, though we
encourage you to check
your frond loader as
there can occasionally
be variations in
measurements. The high
capacity hydraulic ram
ensures a firm grip on
the bale, while multiple
grease-points provide
smooth trouble-free
operation. Rear 'legs'
provide proper support
when un-hitched and
sitting on the ground,
while also making
hitching much easier.
Featuring robust, fully
welded tubular steel
construction, this
greatly reduces the risk
for damage to bales.
This handler utilizes
your tractor's existing
4-in-1 hydraulic
couplers, so hookup is a
breeze. Large, tubular
hands means you can
securely grab bales
without over squeezing,
deforming or damaging
the bale. With fully
controllable hydraulic
operation, which gives
the operator flexibility
in loading - easy access
between closely stacked
bales. Recommended for
use on skid steer
loaders, tele-handlers
and of course, tractor
loaders. |
|
Hitch |
EuroHitch |
|
Requirements |
Front End Loader
with 4-in-1 connectors |
|
Hydraulic |
Yes |
|
Construction |
Fully
Welded Steel |
|
Load
Capacity |
800kg (or
capacity of loader, whichever is less) |
⚠

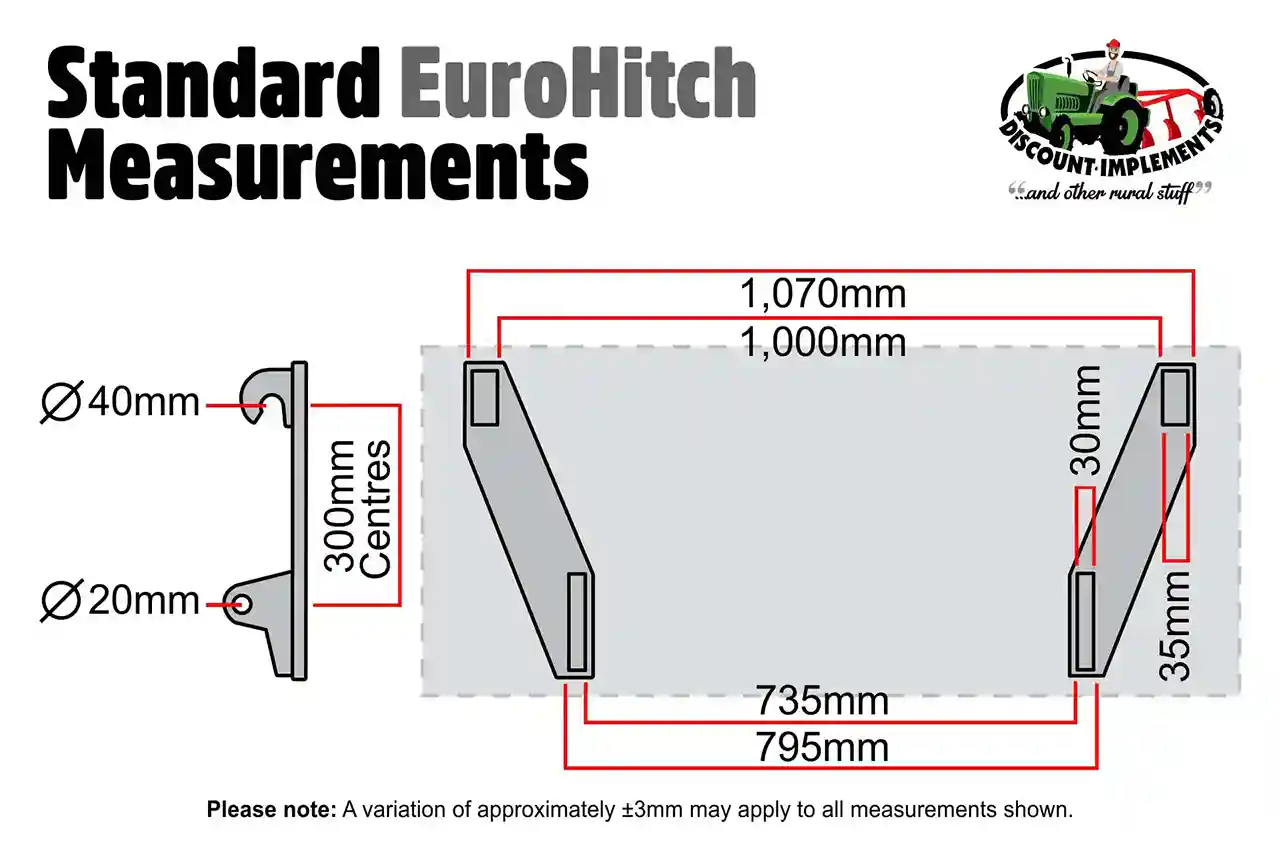

Please Note: This implement utilizes the standard EuroHitch fitting,
however, we encourage you to double check your frond
loader as there can occasionally be
variations in measurements.
 |
|
|
EuroHitch Pallet Forks &
Bale Spike Combo |
|
The dedicated EuroHitch
Pallet Forks & Bale
Spike Combo are a great
addition to your Front
End Loader equipment.
Easily switch between
the adjustable pallet
forks or bale spike
depending on your
application. The unit
supports up to 800kg, or
the maximum capacity of
your loader (whichever
is less). Our dedicated
Pallet Forks / Bale
Spike combo units are
constructed from durable
high quality, heavy duty
steel.
Using a pallet, it?s
perfect for transporting
water & diesel tanks,
chainsaws, toolboxes,
stock feed, small tanks,
hoses, generators etc. |
|
|
Hitch |
EuroHitch |
|
Requirements |
Front End Loader |
|
Adjustable Fork Tynes |
Yes |
|
Number of Tynes |
2 |
|
Number
of Spikes |
3 |
|
Back
Board |
Yes |
|
Load
Capacity |
800kg (or capacity of loader,
whichever is less) |
⚠
Please Note: This implement utilizes the standard EuroHitch fitting,
however, we encourage you to double check your frond
loader as there can occasionally be
variations in measurements.
|
|
|
Mini Round Bale /
Silage Wrapper |
|
The electric
Mini Bale / Silage
Wrapper
is the ideal solution
for efficient and
reliable silage
wrapping. This
high-quality and
affordable wrapper is
perfect for farm and
acreage owners who want
to store their hay and
forage without the risk
of spoilage or waste.
Thanks to its powerful
550 watt electric motor,
the
Mini Bale / Silage
Wrapper
can wrap bales quickly
and easily, while
ensuring consistent and
secure wrapping for
optimal storage. Built
to withstand harsh
weather conditions and
heavy use, the
Mini Bale / Silage
Wrapper
is a reliable choice
that can help you
achieve a quick return
on investment with its
high output and ease of
use. |
|
|
Hitch |
None |
|
Power Source |
Electric, 240V AC @ 50Hz |
|
Power Consumption |
550W |
|
Max. Bale Size |
Up to 700mm Diameter, 800mm Length |
|
Wrapping Capacity |
Up to 120 Bales / Hour |
|
Machine Dimensions |
850mm (W) x 1550mm (L) x 1100mm (H) |
|
Reduction Gearbox |
Yes |
|
Electronic Wrap Control |
Yes |
|
Final Drive |
Chain |
|
Film Holder |
Spring-tensioned |
|
|
|
700mm Mini Round Baler |
|
The 700mm Mini Round
Baler makes baling a
breeze. Aim to have your
windrows at 800mm wide,
optimal for pickup. This
unit features dual twine
spools plus electric
alarm and bale ejection
control, which is easily
passed through to the
tractor. The alarm is
triggered automatically
once the bale has
reached optimal size.
The operator simply
stops the tractor and
activates the bale
ejection control, the
Baler does the rest for
you, including cutting
the twine, ready for the
next bale.
As a failsafe, the Baler
will automatically stop
if a bale becomes too
large, in the event the
operator fails to eject
a completed bale.
With its mostly
automated operation,
productivity is
increased, meaning the
operator won't have to
leave the comfort of the
tractor seat. |
|

|
Hitch |
3 Point Linkage |
|
Tractor Power Required |
30-50 HP |
|
Bale Size |
610mm x 700mm |
|
Dimensions |
1,350mm (W) x 1,300mm (L) x 1,300mm (H) |
|
Machine Mass |
440kg |
|
PTO Speed |
540 RPM |
|
PTO Spline |
F35, 6 teeth
1
3/8" (35mm) |
|
Production Capacity |
80-120 Bales per hour |
|
Pickup Width |
800mm |
|
Tyres |
16x6.50-8 |
|
Working Speed |
2-5km/h |
|
|
|
*
Implement specifications
are correct at time of
publication but are
subject to change or
correction without prior
notice. All prices
include GST.
Note: Implements with
gearboxes (ie. Connect
to the tractor with a
PTO shaft) do not
contain oil when new -
add gear oil before use.
Some assembly is
required. Gear oil not
included. |
|
|
