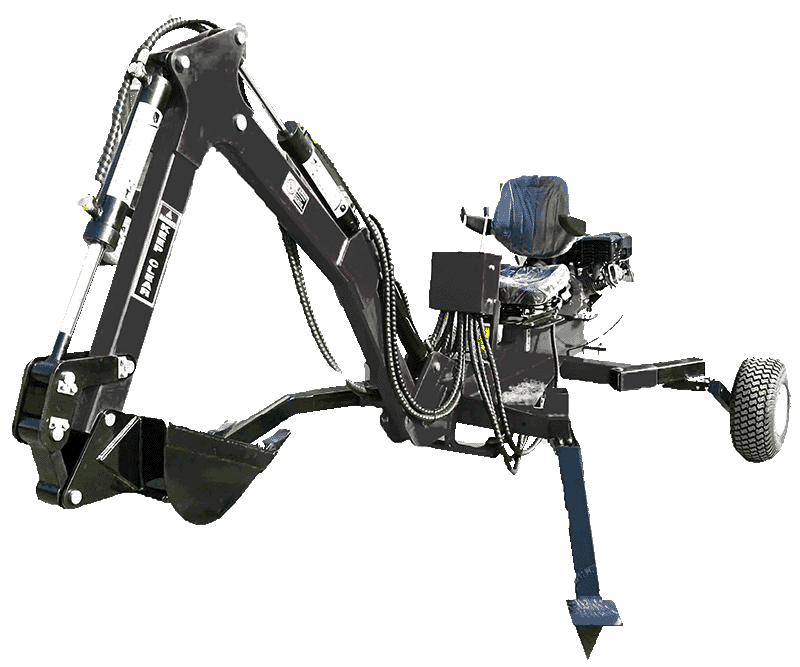

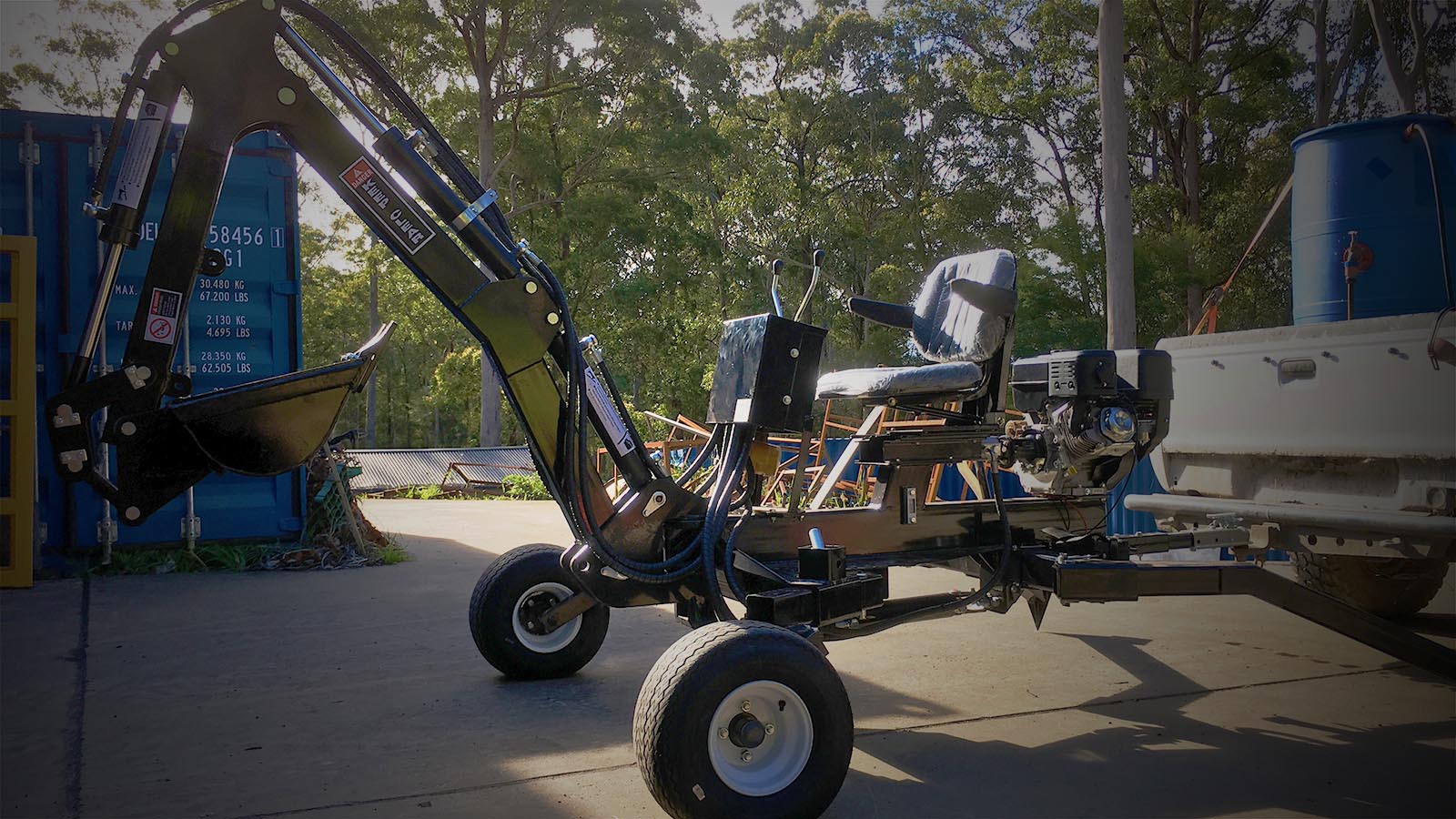

Towable Backhoe

The towable backhoe is great for all-round general requirements and represents great value for money. This machine can be towed behind your ATV, Quad Bike, Ute, Tractor etc. Enjoy easy joy-stick controls. The boom pivots through a range of 120°. You get a comfy padded seat. The towable backhoe is simple for one person to attach and operate.



Great for digging trenches for plumbing, draining and footings - breaking up rocky soil - channelling rainfall runoff - tree planting and relocating - cleaning drains and dams. Machine is easily repositioned, using the boom as a simple lever with the wheels in combination. The towable backhoe is easily repositioned, using the boom as a simple lever with the wheels in combination.





Optional Extras...

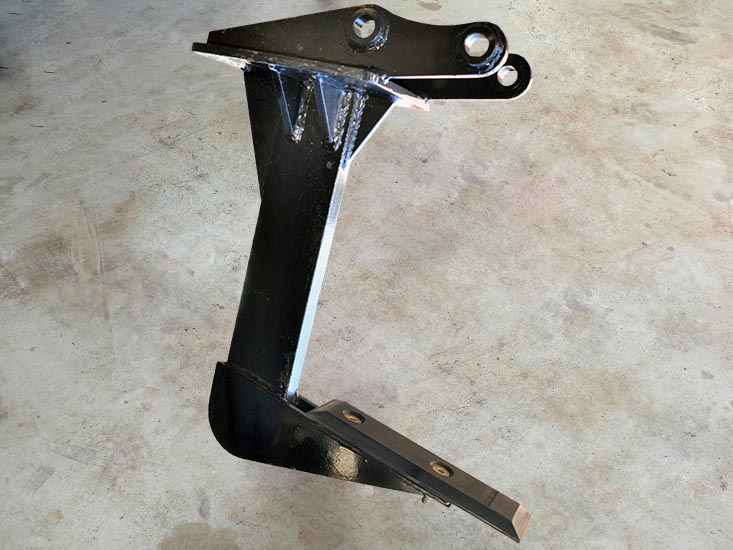

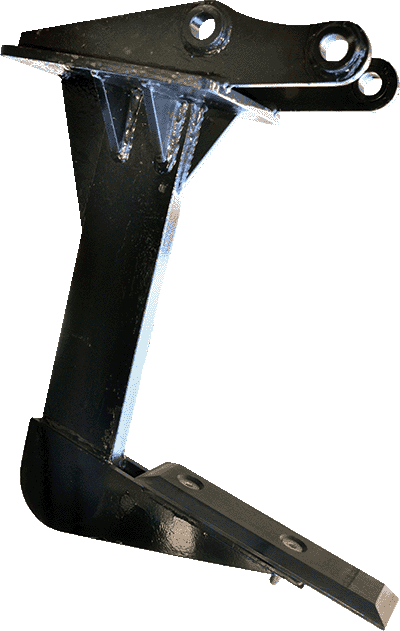

Ripper Attachment

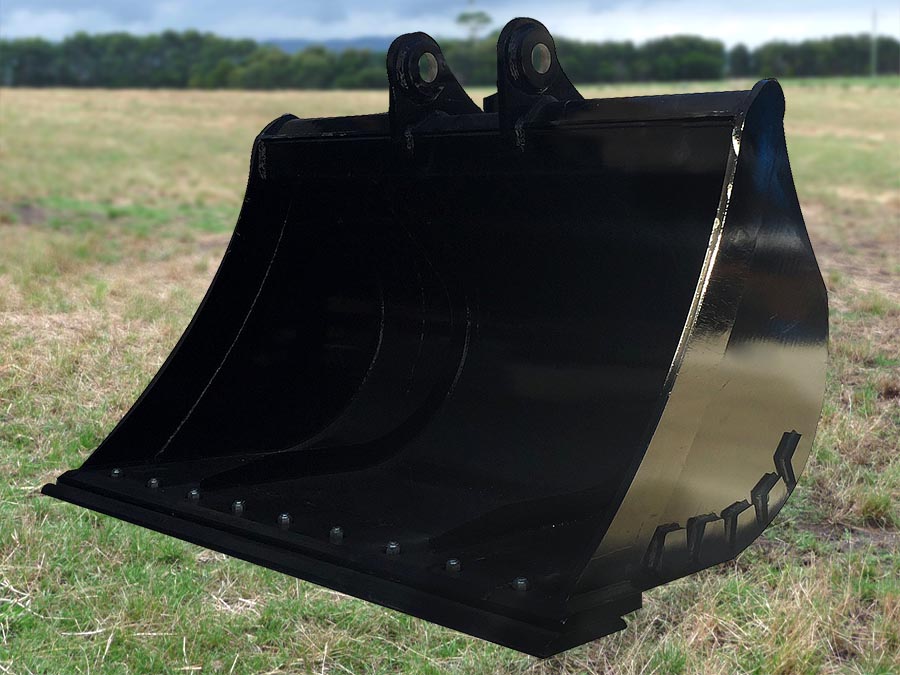

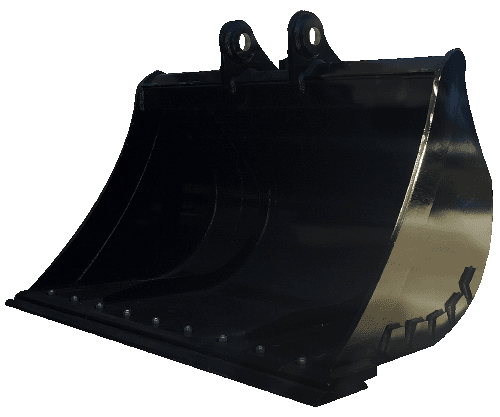

Mud Bucket

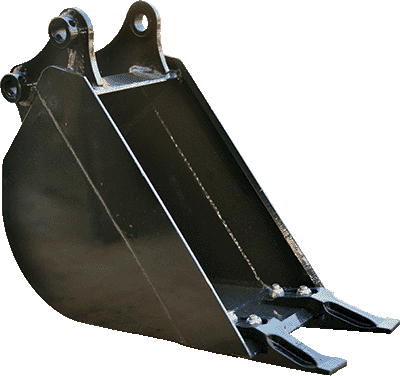

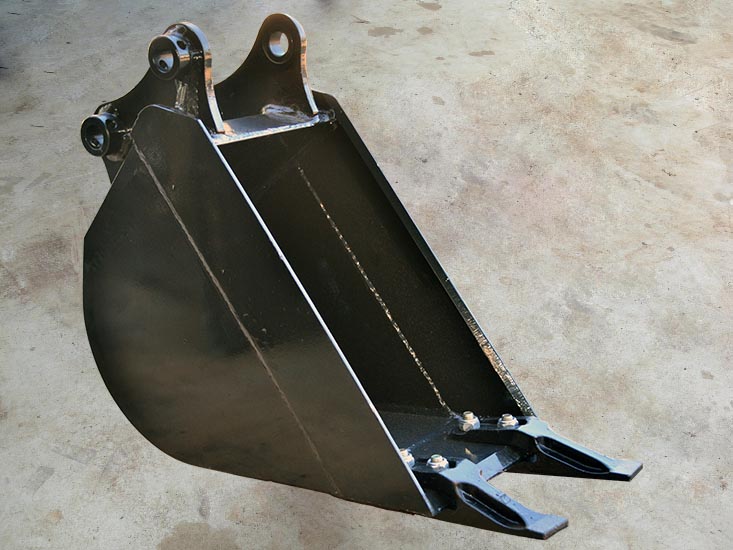

Trench Bucket







Hitch

50mm Towball

Engine

420cc Petrol, 14HP (10.4kW) @ 3,500 RPM

Hydraulic Power Source Onboard Hydraulics

Max. Digging Depth

2,200mm

Swing Angle

120°

Max. Dump Height

1,100mm

Max. Reach

2,400mm

Stabilizer Span

1,180mm

Unit Mass

535kg

Controls Joysticks Controller

Transport Locks

Yes, Boom Lock Pin

Seatbelt Installed

Yes



* Implement specifications are correct at time of publication but are subject to change or correction without prior notice. All prices include GST.

Note: Implements with gearboxes (ie. Connect to the tractor with a PTO shaft) do not contain oil when new - add gear oil before use. Some assembly is required. Gear oil not included.
